Filtering Tombstone Records in Kafka Connect

Kafka Connect provides a flexible way to process streaming data using Single Message Transforms (SMTs). If you need to filter out tombstone records (records with null values), you should use the generic Filter transformation along with the RecordIsTombstone predicate.

Here’s the correct configuration:

# Define the predicate to detect tombstone records (i.e., records with null values)

predicates=dropTombstone
predicates.dropTombstone.type=org.apache.kafka.connect.transforms.predicates.RecordIsTombstone

# Configure the Filter transformation to drop records that match the predicate

transforms=dropTombstone
transforms.dropTombstone.type=org.apache.kafka.connect.transforms.Filter
transforms.dropTombstone.predicate=dropTombstone

Explanation

#

What is a Predicate?

#

A predicate in Kafka Connect is a condition that evaluates whether a given record meets certain criteria. It returns either true or false. If true, the transformation (such as filtering) is applied. In this case, the predicate named dropTombstone uses the built-in class RecordIsTombstone, which evaluates to true when a record’s value is null.

Predicate Setup

#

The predicate named dropTombstone uses the built-in class RecordIsTombstone, which evaluates to true when a record’s value is null.

What is the Filter Transformation?

#

The Filter transformation allows records to be selectively included or excluded based on a predicate. If a record satisfies the specified predicate (i.e., evaluates to true), the Filter transformation removes it from the stream. This is useful for cleaning up unnecessary records before they reach downstream systems.

Filter Transformation

#

The Filter SMT is configured to drop any record for which the predicate evaluates to true, ensuring that tombstone records are filtered out before they reach downstream systems.

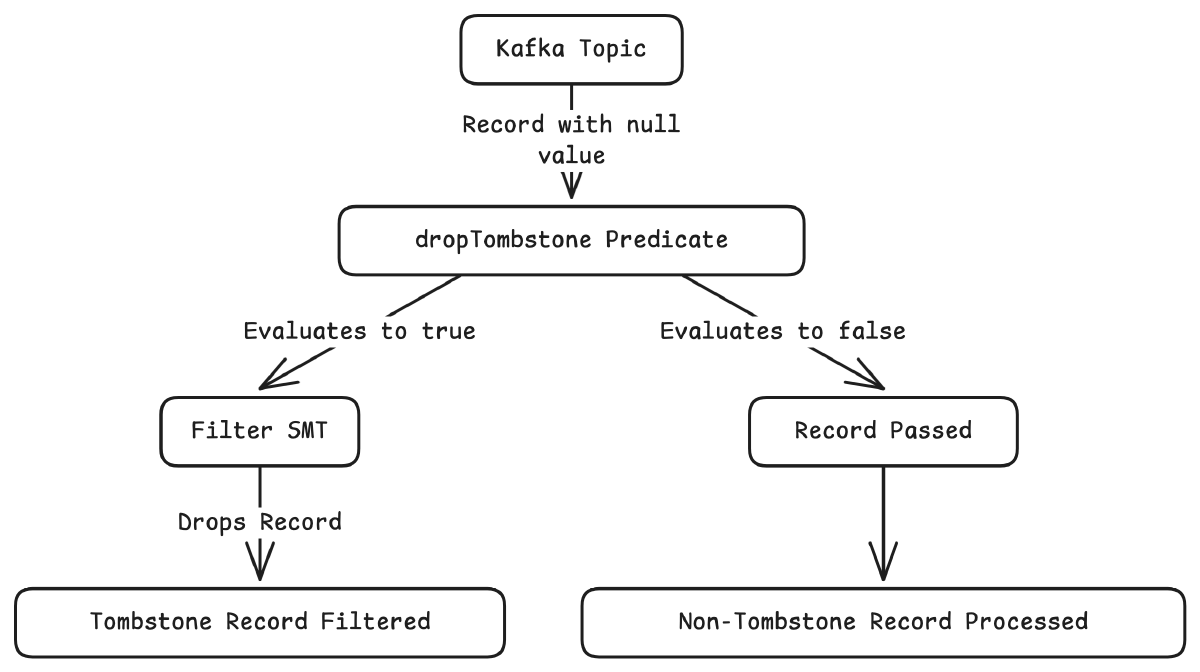

How It Works in This Configuration

#

1. The dropTombstone predicate detects tombstone records (null values) in Kafka topics.
2. The Filter SMT is configured to drop any record where the predicate evaluates to true, effectively filtering out tombstone records.

This setup aligns with the Kafka Connect documentation on predicates and transformations, allowing you to handle tombstone records effectively in your data pipeline.

#
